MOTU 8Pre ES - preamp

Model, zamknięty w obudowie rack 1U, wykorzystuje przetworniki D/A ESS Sabre32 i może obsługiwać jednocześnie 52 kanały audio oferując 24 wejścia i 28 wyjść. Naturalnie ich liczba zmniejsza się w zależności od wybranej częstotliwości próbkowania (przy najwyższej obsługiwanej wartości 192 kHz jest to 8 wejść i 2 wyjścia). MOTU 8pre-es może współpracować zarówno z komputerami PC i Mac, jak również z urządzeniami mobilnymi z systemem iOS.

52 simultaneous audio channels

24 inputs and 28 outputs, all independent

Connect all your studio gear, including microphones, guitars, synths, keyboards, drum machines, outboard processors and optical expanders. All I/O is available simultaneously.

Superb analog audio quality

Renowned ESS Sabre32 Ultra DAC technology

Renowned ESS Sabre32 DAC technology delivers measured 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

Redesigned mic channels

Cutting-edge components deliver ultra-transparent sound

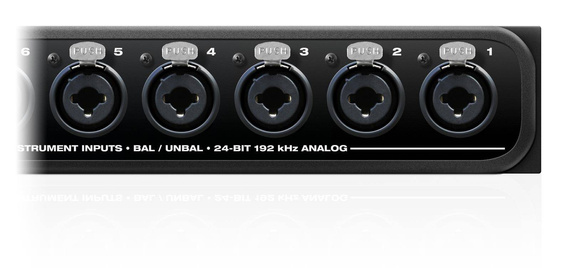

Eight transparent mic preamps deliver superb -108 dB THD+N, 118 dB dynamic range and -129 dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power and digital remote control.

High-performance Thunderbolt and USB drivers for Mac and PC

Ultra-low latency and renowned rock-solid performance

Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt with high-performance DAW hosts.

Universal connectivity

USB and Thunderbolt for Mac, PC and iOS

Connect to your Mac or PC with Thunderbolt or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad with a standard camera connection kit (adapter).

Control room features

Take control of your recording sessions

Take control of your recording sessions with the built-in talkback mic and front-panel talk button. Connect two sets of speakers and check your mixes instantly with front-panel A/B speaker select buttons.

DSP mixing and effects

Console-style mixing with 48 channels and 12 busses

A full-fledged 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects including reverb, 4-band EQ, gate and compression. If you know your way around a large-format mixing console, you'll feel right at home. If you've ever wished to mix on a large console, the driver's seat is now yours.

Modeled vintage effects processing

Vintage processing with 32-bit float precision

Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs. The 8pre-es DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Flexible matrix routing and splitting

Route your audio anywhere with one-click ease

Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the audio network.

Web app control from any device

Control everything from your laptop, tablet, and smartphone

The software that you use to control the 8pre-es doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 8pre-es onboard DSP, mixing, device settings, and network audio routing from your favorite web browser on a laptop, tablet or smartphone connected by wire or Wi-Fi to your local area network. Use any web client on any platform - Mac, Windows, Linux, iOS, Android - as long as it shares the same network

Touch Console

The art of the mix on your touchscreen

Designed specifically for touchscreen operation, Touch Console delivers a whole new mixing experience. Access Touch Console from your tablet or smartphone to effortlessly control the powerful 48-channel mixer and effects in the 8pre-es. With large targets for your fingers, multi-touch operation and intuitive design, you can tap, swipe and pinch your way to a perfect mix, every time.

Stand-alone operation with the wireless control

No computer or laptop needed

Connect an Apple Airport or other Wi-Fi routers with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing, and DSP effects.

Solid metal chassis

MOTU interfaces are built to last

Like all MOTU interfaces, the 8pre-es aluminum alloy chassis is lightweight, yet incredibly sturdy and durable, and designed to withstand the rigors of the studio, stage, and tour bus. In a world awash with cheap plastic, the solid feeling of the 8pre-es metal exterior in your hands is a reassuring reminder that you are holding quality engineering and construction.

System expansion/networking

Expand your system with more I/O and Wi-Fi control

Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e Ethernet cable.

Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).

Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Advanced Extras

The engineering behind the 8pre-es runs deep to give your audio recordings the depth of quality they deserve

Two banks of optical

Two optical banks provide 16 channels of ADAT optical at 48 kHz, 8 channels of S/MUX optical I/O at 96 kHz or a single stereo TOSLink pair at rates up to 96kHz.

Balanced analog

8pre-es balanced I/O connections are well-protected against RF interference, AC hum, and other noise-producing environmental factors.

Time code support

Converts SMPTE time code (LTC) to MIDI Time Code (MTC) and passes MTC on to any MTC-compatible host software.

Two headphone jacks

Each headphone output can be programmed with the same or different mixes, with independent front-panel volume control.

DC-coupled TRS outputs

Use the 8pre-es to manipulate sequence voltage-controlled modular synthesizers from a host DAW.

Audio analysis tools

Includes an oscilloscope, real-time FFT, X-Y Plot, and graphic phase analysis.

AudioDesk

Powerful audio workstation technology for Mac and Windows

Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.

8pre-es Feature Summary

Superb analog audio quality and high-end converters

Eight transparent mic inputs deliver superb 129 dBu EIN with 118 dB dynamic range. Renowned ESS Sabre32 DAC technology delivers 123 dB dynamic range and the same proven, award-winning audio quality as MOTU's flagship 1248.

New dual-LCD design

Two full-color LCDs display all signal activity at a glance with detailed metering for all analog and digital I/O. Access hardware settings from a simple and convenient menu.

Ultra-low latency and proven, high-performance MOTU drivers

Round-trip latency (RTL) performance as low as 1.6 ms at 96kHz over Thunderbolt with high-performance DAW hosts.

Universal connectivity

Connect to your Mac or PC with Thunderbolt or Hi-speed USB 2.0, with up to 256 audio channels (128 in and 128 out) over Thunderbolt. Or stream dozens of audio channels to and from your Mac over AVB/TSN Ethernet using a standard, affordable CAT-5e cable up to 100 meters long. Class-compliant firmware and industry standard drivers work with any audio apps. Connect to your iPad with a standard camera connection kit (adapter).

52 simultaneous audio channels

24 inputs and 28 outputs, including eight transparent remote-controllable mic inputs with individual gain/pad/48V, 8 TRS analog out, two banks of optical, word clock I/O and two front-panel headphone jacks.

DSP mixing and effects processing

Flexible 48-input digital mixer with 7 stereo aux busses, 3 groups, access to 32 network inputs, and DSP effects, including reverb, 4-band EQ, gate and compression.

32-bit floating point processing

The 8pre-es mixing and effects DSP engine delivers virtually unlimited headroom and the utmost in sound quality.

Modeled vintage effects processing

Classic reverb. Compression modeled after the legendary LA-2A compressor. EQ modeled after British analog console EQs.

Flexible matrix routing and splitting

Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.

Control room features

Built-in talkback mic with front-panel ""talk"" button and""A/B"" speaker select buttons.

Precision Digital Trim

Digitally controlled analog trim on all analog inputs (mic/guitar inputs + quarter-inch TRS inputs) provides accurate adjustments in 1 dB increments.

Stand-alone operation with the wireless control

Connect an Apple Airport or other Wi-Fi routers with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.

New Touch Console web app control

Control everything from mobile-friendly web app software on any laptop, tablet, and smartphone connected to your local Wi-Fi network.

System expansion

Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).

AVB/TSN audio networking

Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.

Two headphone jacks

Each headphone output can be programmed with the same or different mixes, with independent front-panel volume control.

Two banks of optical I/O

Connect outboard digital processors, digital mixers or other gear. Two banks provide 16 channels of ADAT optical at 48 kHz, 8 channels of S/MUX optical I/O at 96 kHz or a single stereo TOSLink pair at rates up to 96kHz.

Time code support

Converts SMPTE time code (LTC) to MIDI Time Code (MTC) and passes MTC on to any MTC-compatible host software.

Direct Digital Synthesis (DDS)

DSP-driven phase lock engine and internal clock source produce imperceptibly low jitter characteristics (below the noise floor), even when the 8pre-es is resolved to an external clock source via SMPTE time code.

DC-coupled TRS outputs

Use the 8pre-es to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.

Instrument tuner and audio analysis tools

Includes an oscilloscope, real-time FFT, X-Y Plot, and graphic phase analysis.

AudioDesk

Workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering.
